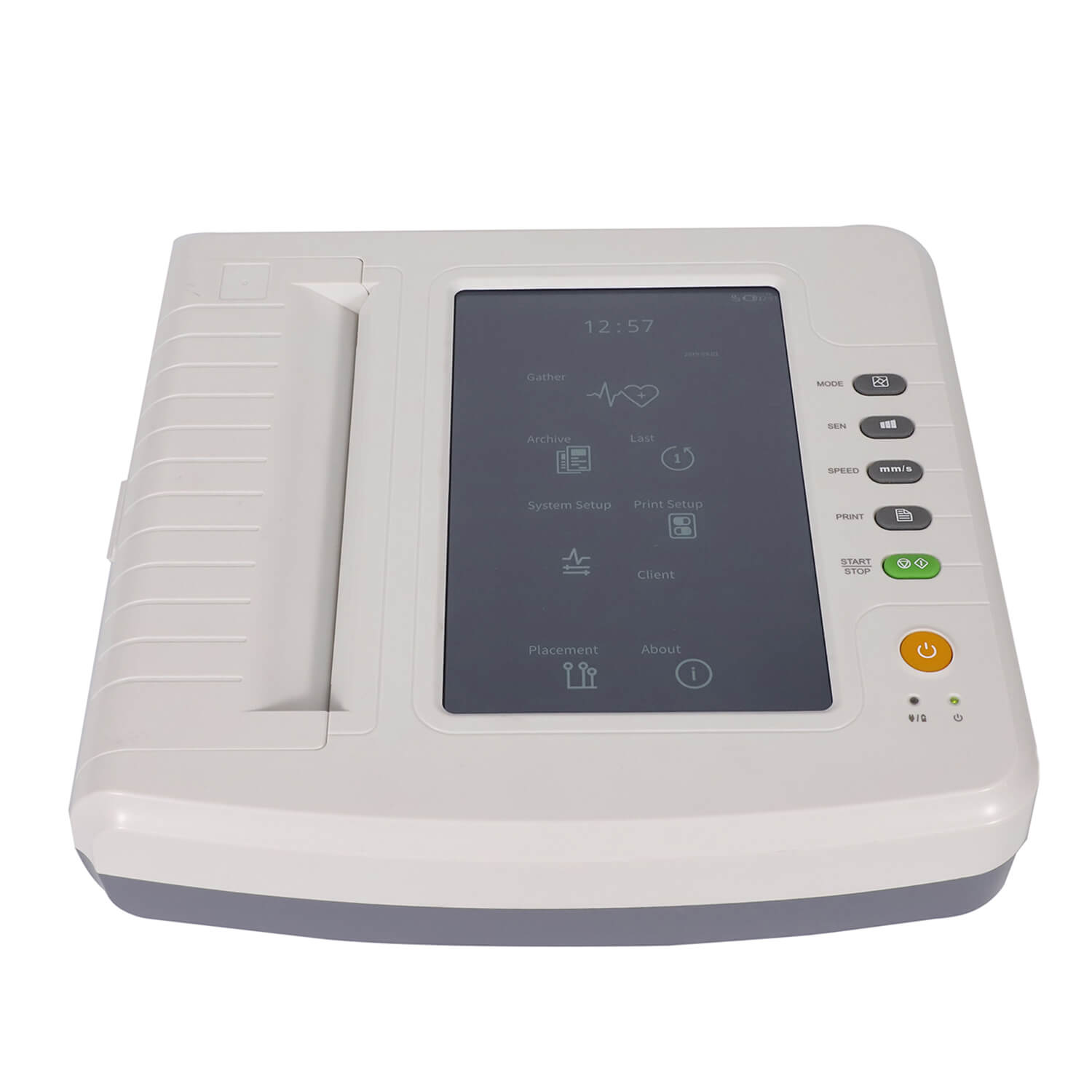

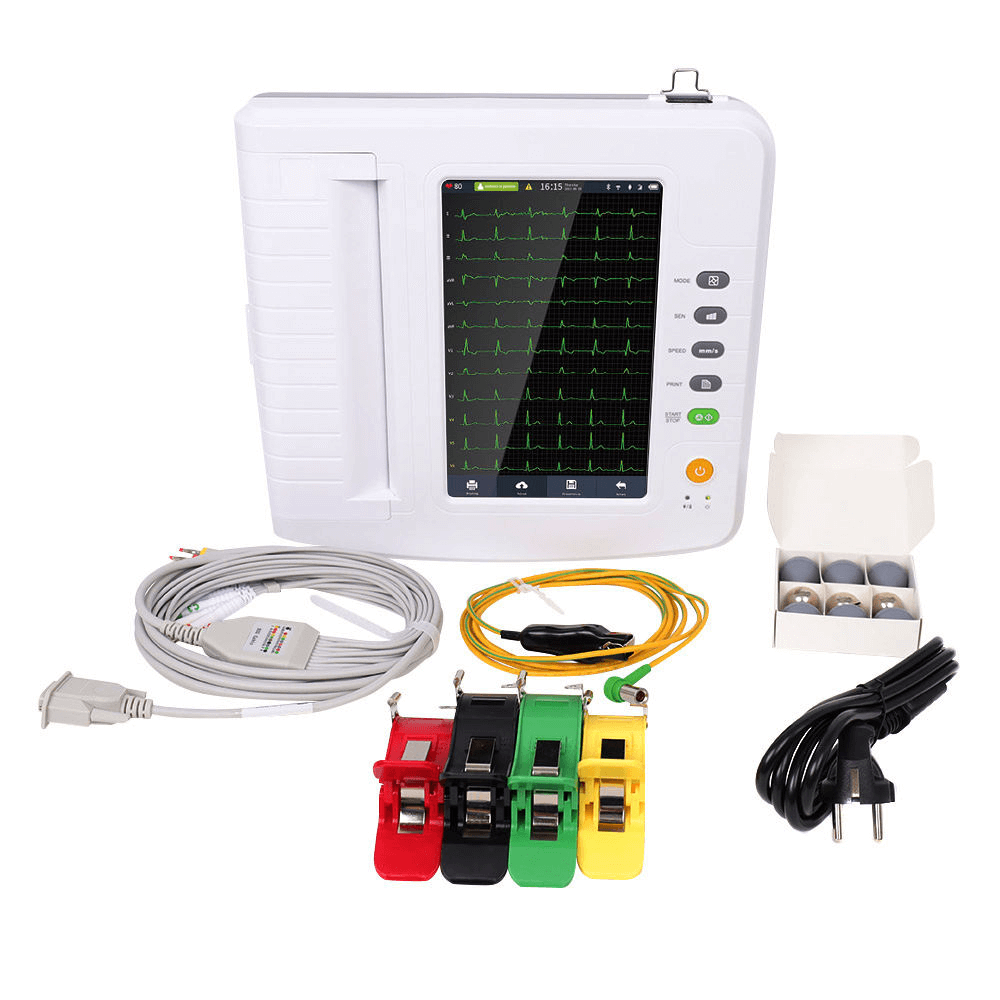

Advanced 12-Channel ECG Machine with Full Touch Screen

hospital-oriented 12-channel ECG system designed for networked clinical workflows, combining wireless data transmission, advanced signal processing, and comprehensive ECG analysis.

12-lead synchronized ECG acquisition
10.1” high-resolution display with touch + buttons
AC / DC power with long battery performance
Automatic ECG measurement & interpretation*
Large-capacity medical record storage

*Function availability depends on regional regulations.

Product Snapshot

Item	Description
ECG Type	12-Channel Electrocardiograph
Display	10.1” High-Resolution Color LCD
Operation	Full Touch Screen + Function Buttons
Power	AC / DC, Built-in Lithium Battery
Data Storage	≥ 4000 Cases
Application Level	Hospital / Advanced Diagnostics

Clinical Application

• Hospital cardiology departments

• Diagnostic and examination centers

• Mobile medical services and home visits

• Routine and advanced ECG diagnostics

Learn more about ECG use scenarios →

Signal Acquisition & Display Capability

• Synchronized collection of 12-lead ECG signals
• Support for standard 12-lead and Cabrera-lead waveform display
• High-quality waveform acquisition using power frequency (50 / 60 Hz), baseline, and EMG filters (25 / 35 Hz)
• Display of 3 / 6 / 12-lead waveforms on a single screen
• Real-time display of HR, print mode, sensitivity, paper speed, filter state, clock, battery power, background grid, measured parameters, and interpretation

Printing & Workflow Flexibility

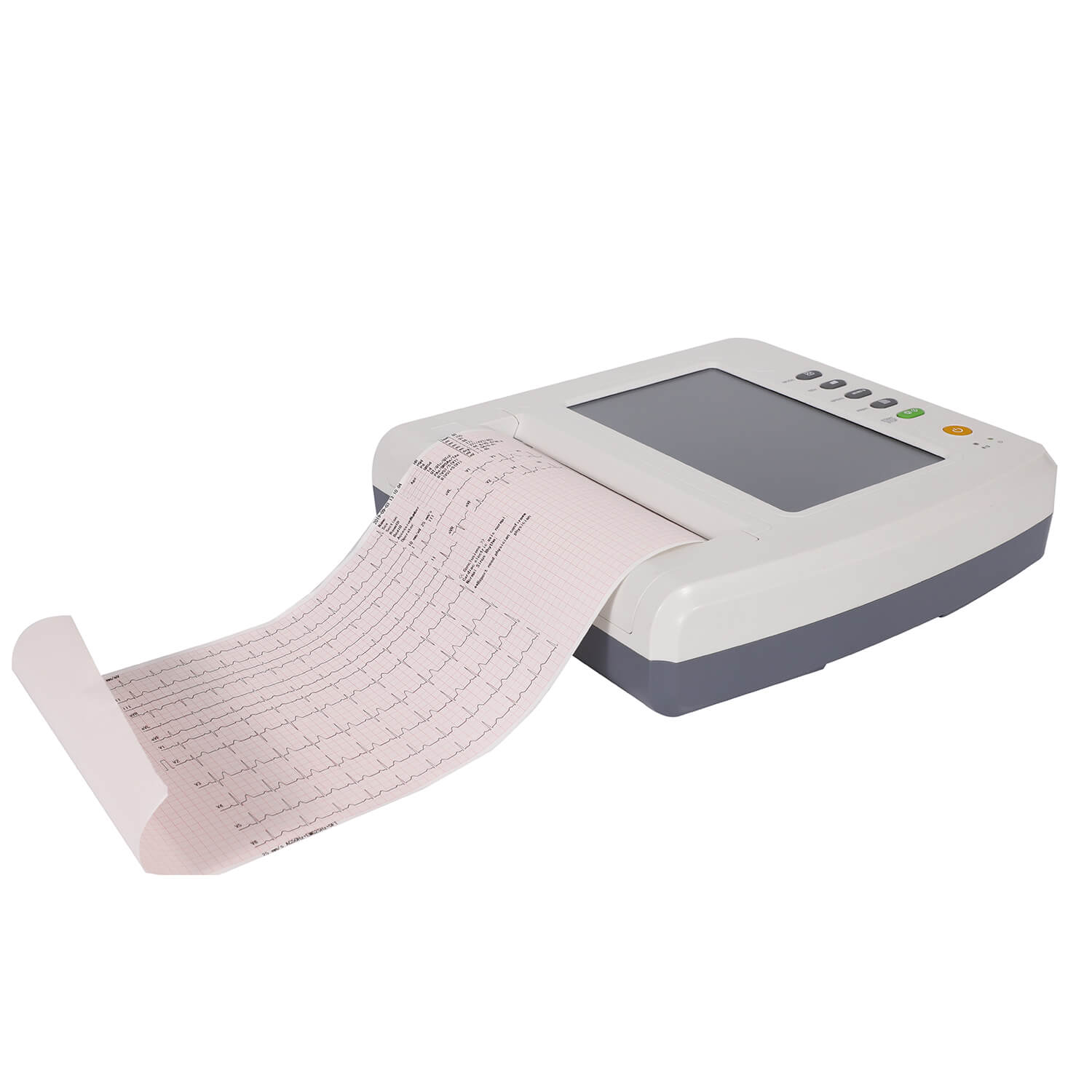

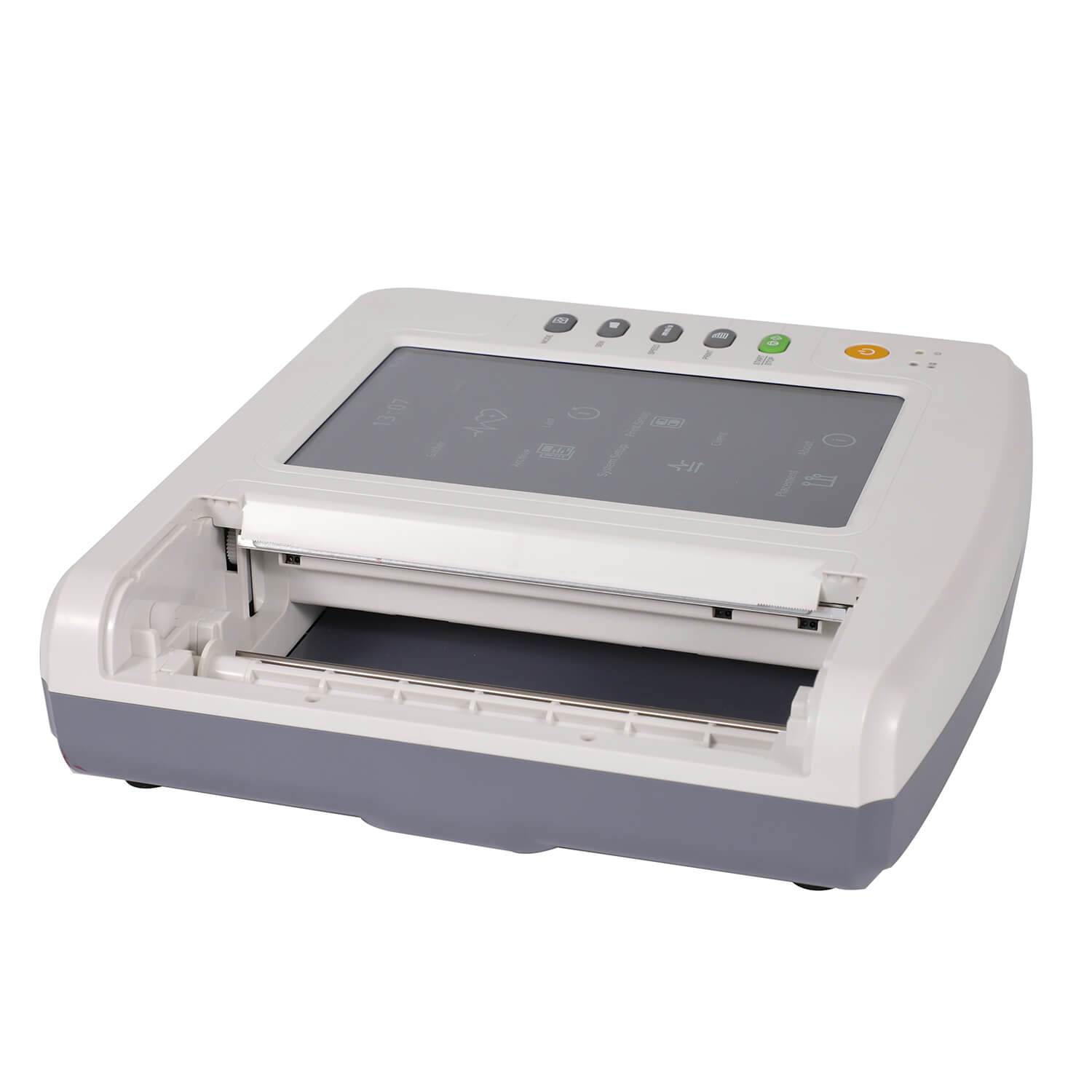

• Built-in thermal printer
• Multiple printing modes: auto M × N, M × N + 1, M × N + 2, rhythm M line, and manual
• Adjustable waveform length and report layout
• Print contents include time, sensitivity, calibration signal, lead name, filter state, and patient information
• Support for histogram, trend chart, interval list, and superimposed QRS waveform
• Timing print and automatic arrhythmia print functions for diverse clinical needs

Automatic Measurement & Interpretation

The device supports automatic measurement and interpretation of routine ECG parameters, including:

Heart rate (HR)
PR interval and P duration
QRS duration
QT / QTc interval
P / QRS / T axis
R(V5), S(V1), and R(V5) + S(V1) amplitude

This reduces clinician workload and improves diagnostic efficiency.

Availability may vary depending on regional regulatory requirements.

Data Storage & Case Management

Built-in memory capable of storing at least 4000 ECG cases
Convenient case review, inquiry, modification, and statistics
Historical cases can be transmitted, printed, and lead-corrected
Case data export supported in multiple formats: dat, pdf, xml, bmp, jpeg

Power Performance & Mobility

AC / DC power supply adaptable to 50 / 60 Hz
Built-in rechargeable lithium battery with protection circuits
Up to 10 hours standby time under optimal DC conditions
Continuous printing for more than 3 hours
Suitable for ward rounds, mobile diagnostics, and home visits

Language & Peripheral Support

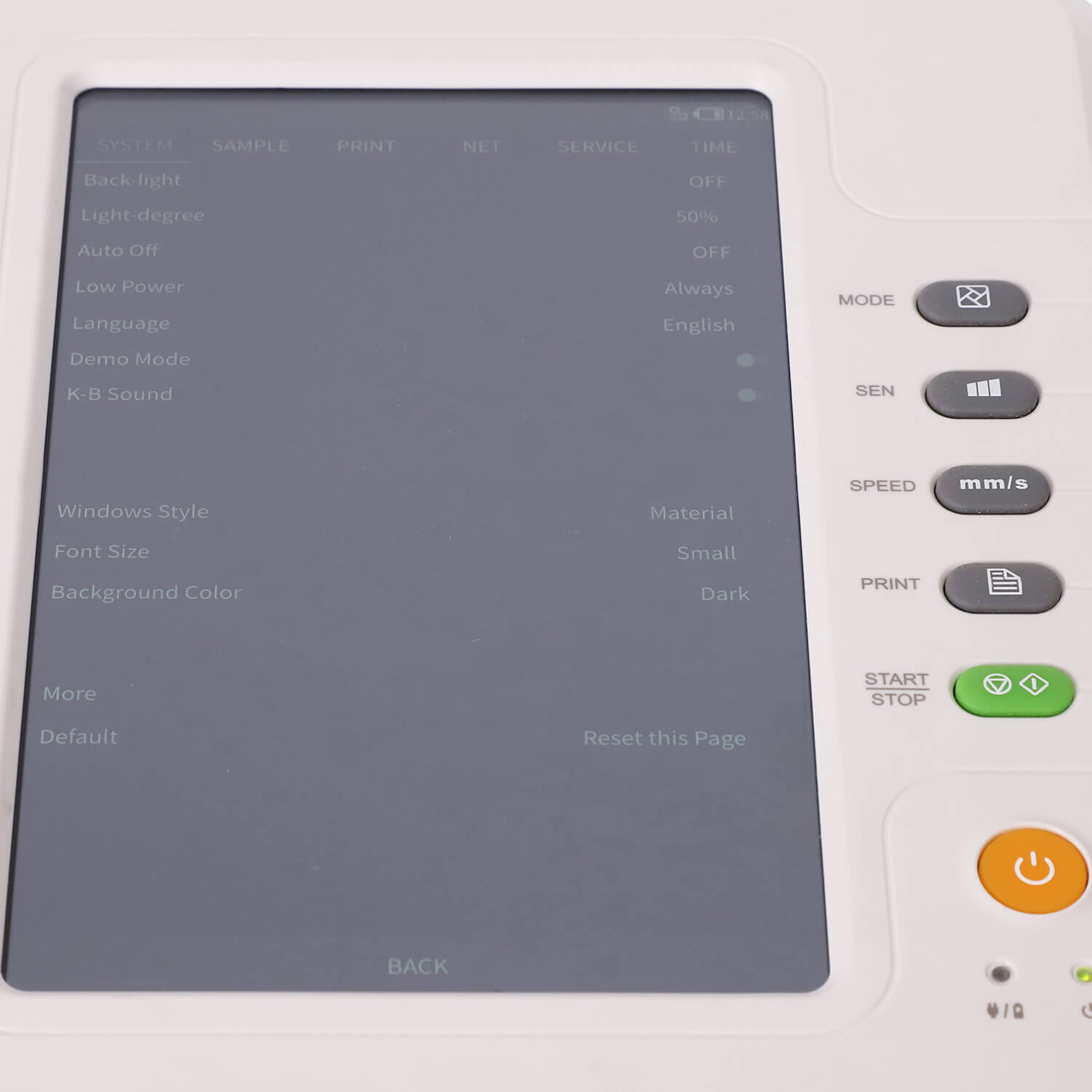

Chinese / English operating interface
Reports can be printed in corresponding language
Built-in virtual keyboard with Chinese / English input

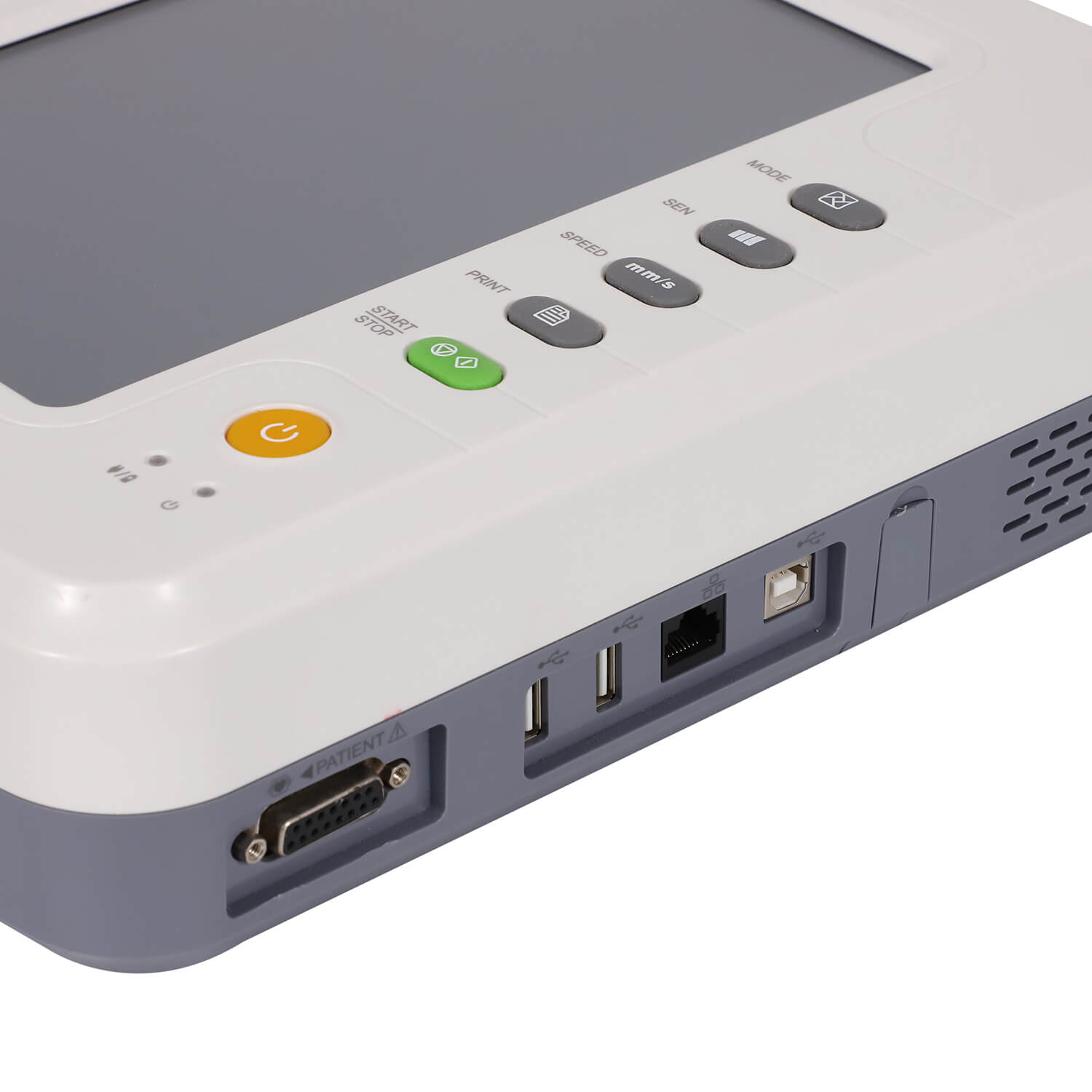

Support for external USB keyboard, mouse, scanner, and printer

Regulatory & Availability Notes

Some functions and configurations are optional
Availability varies by country and region
Please confirm specifications before procurement
