- 12-Channel ECG 1201G
7-inch color LCD 12-Channel ECG Machine for Clinical Diagnostics
professional electrocardiograph designed for routine hospital diagnostics, combining synchronized 12-lead acquisition, color display, and flexible clinical workflows.
Simultaneous 12-lead ECG signal acquisition
Color LCD display with multi-lead waveform view
Automatic ECG measurement and interpretation*
AC / DC power with built-in lithium battery
Product Snapshot
| Item | Description |
| ECG Type | 12-Channel Electrocardiograph |
| Display | 7” High-Resolution Color LCD |
| Operation | Button-Controlled |
| Power | AC / DC, Built-in Lithium Battery |
| Application Level | Hospital / Diagnostic Center |
| Supply Model | Wholesale / Project / OEM |

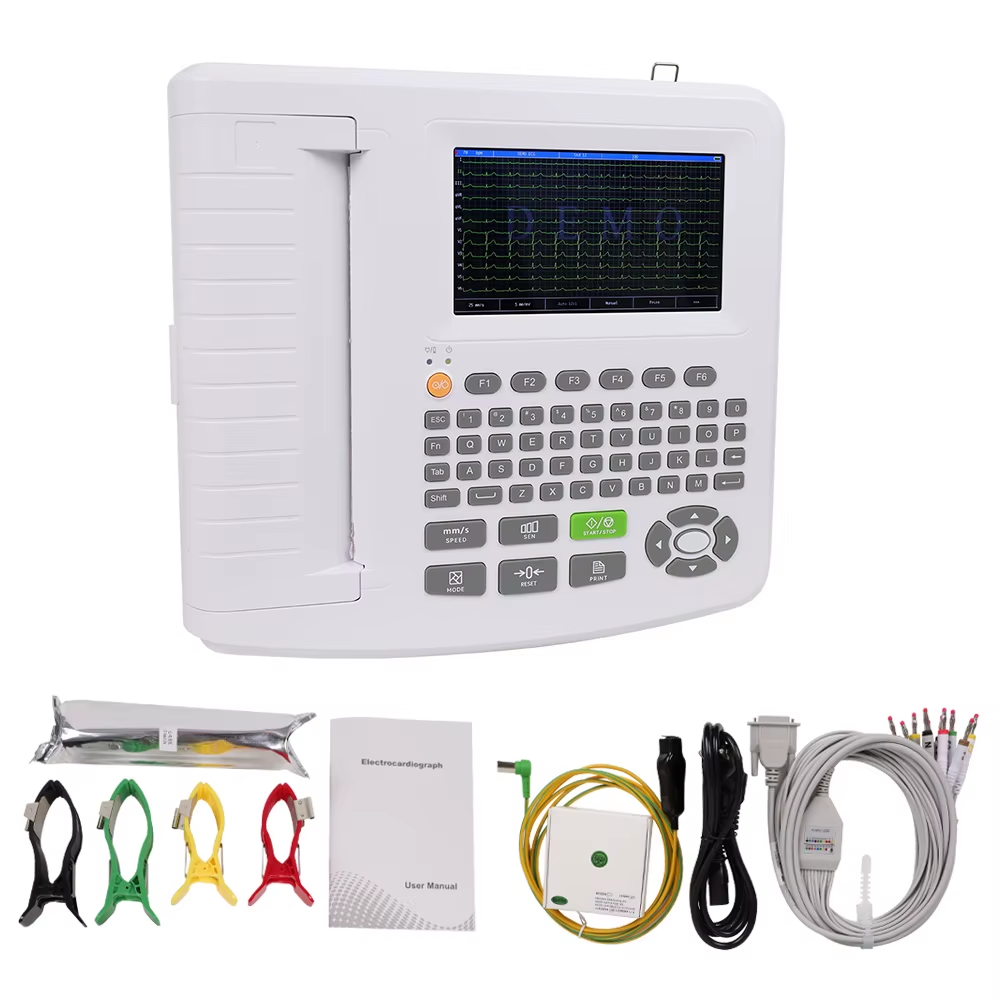

Product Appearance & Clinical Operation
The device is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in auto / manual mode; measuring, analyzing and diagnosing ECG waveform parameters automatically; prompting for “Lead off” and “Lack of paper”; optional interface language (Chinese / English, etc.); built-in lithium battery, AC / DC; selecting rhythm lead freely to observe abnormal heart rhythm; case database management.

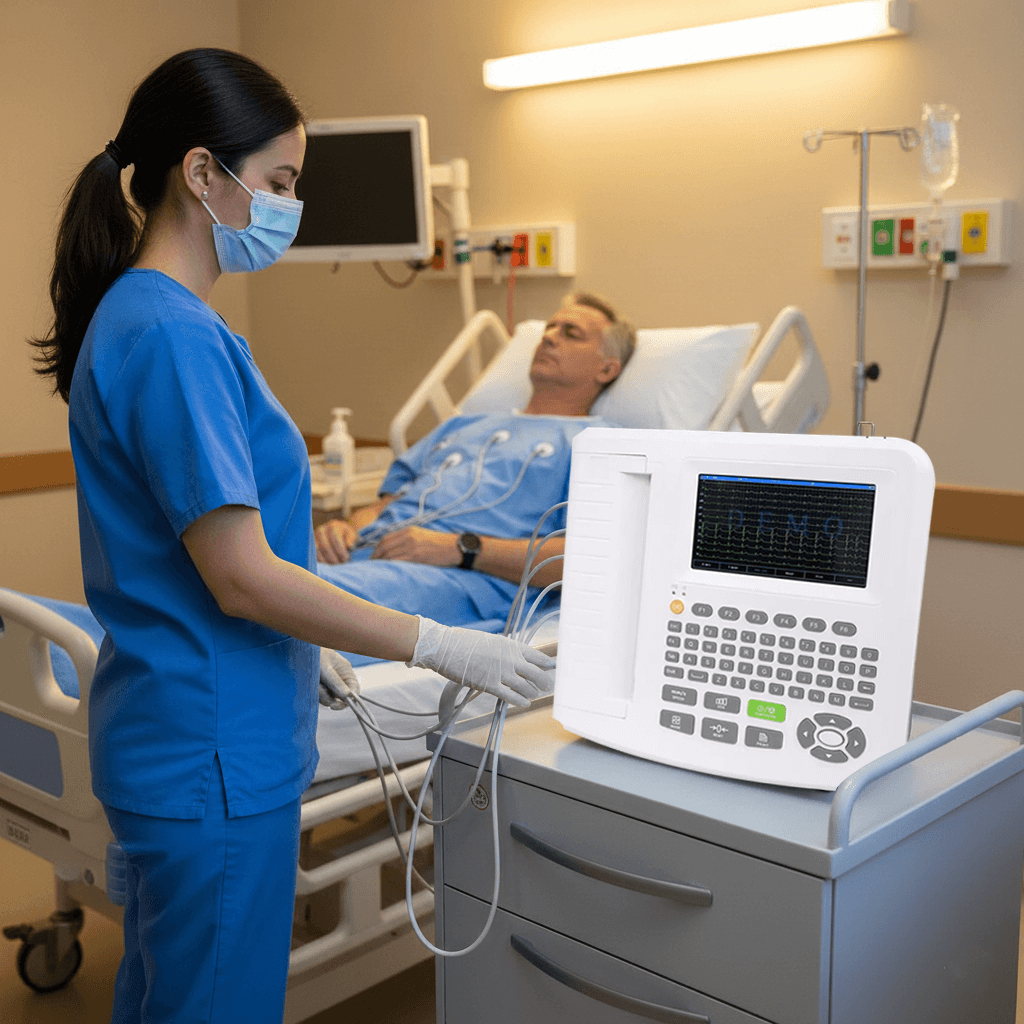

Clinical Application
• Hospital cardiology departments
• General diagnostic departments
• Medical examination centers
• Routine ECG screening workflows

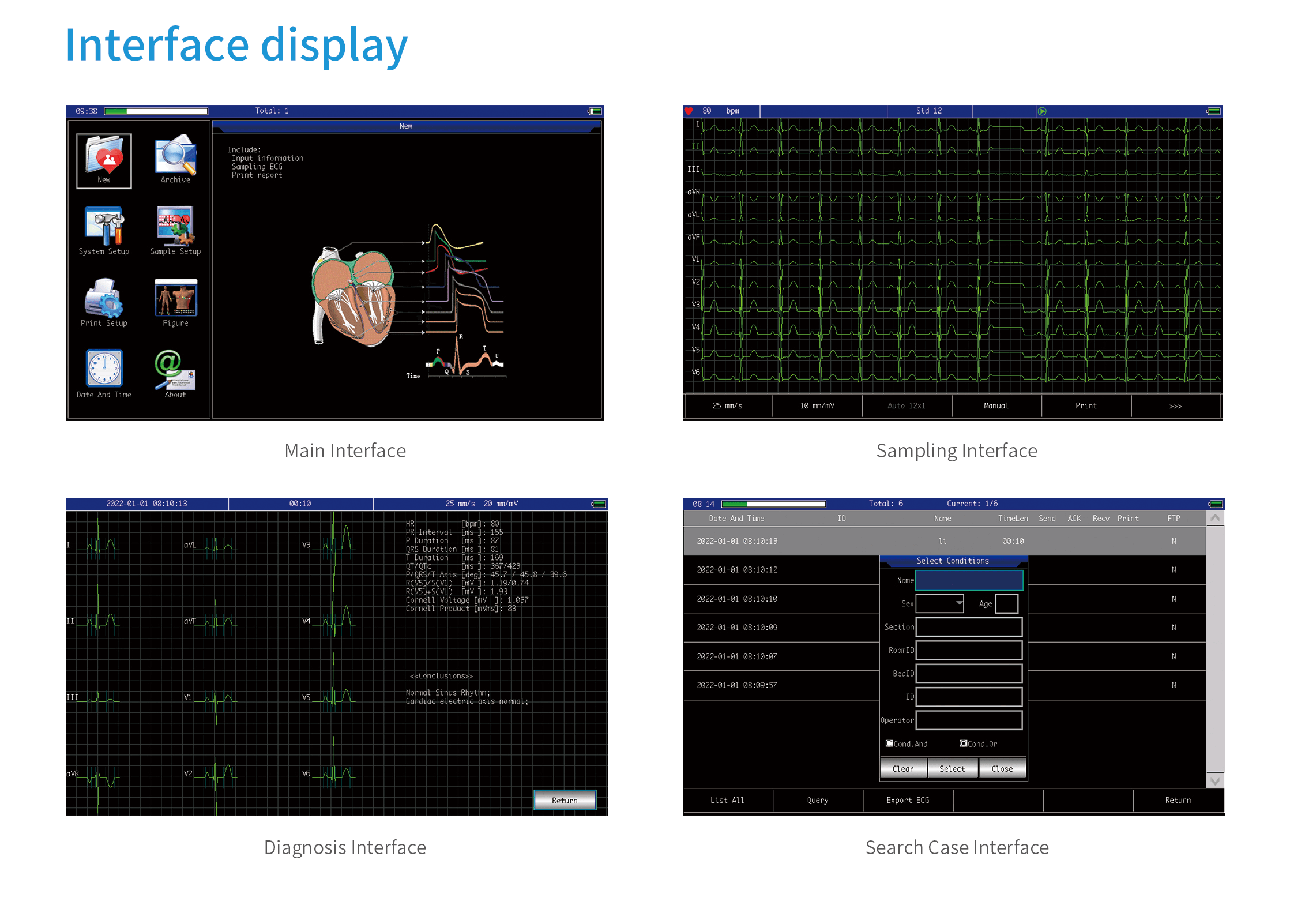

Signal Acquisition & Display Capability
Adopt 7'' high-resolution color LCD, operate by buttons, convenient to use.
Signal Acquisition & Display Capability
• Synchronized collection of 12-lead ECG signals
• Support for standard 12-lead and Cabrera-lead waveform display
• High-quality waveform output using power frequency, baseline, and EMG filters
• Display of 1 / 3 / 6 / 12-lead ECG waveforms on a single screen
• Real-time display of HR, sensitivity, paper speed, filter state, and battery status

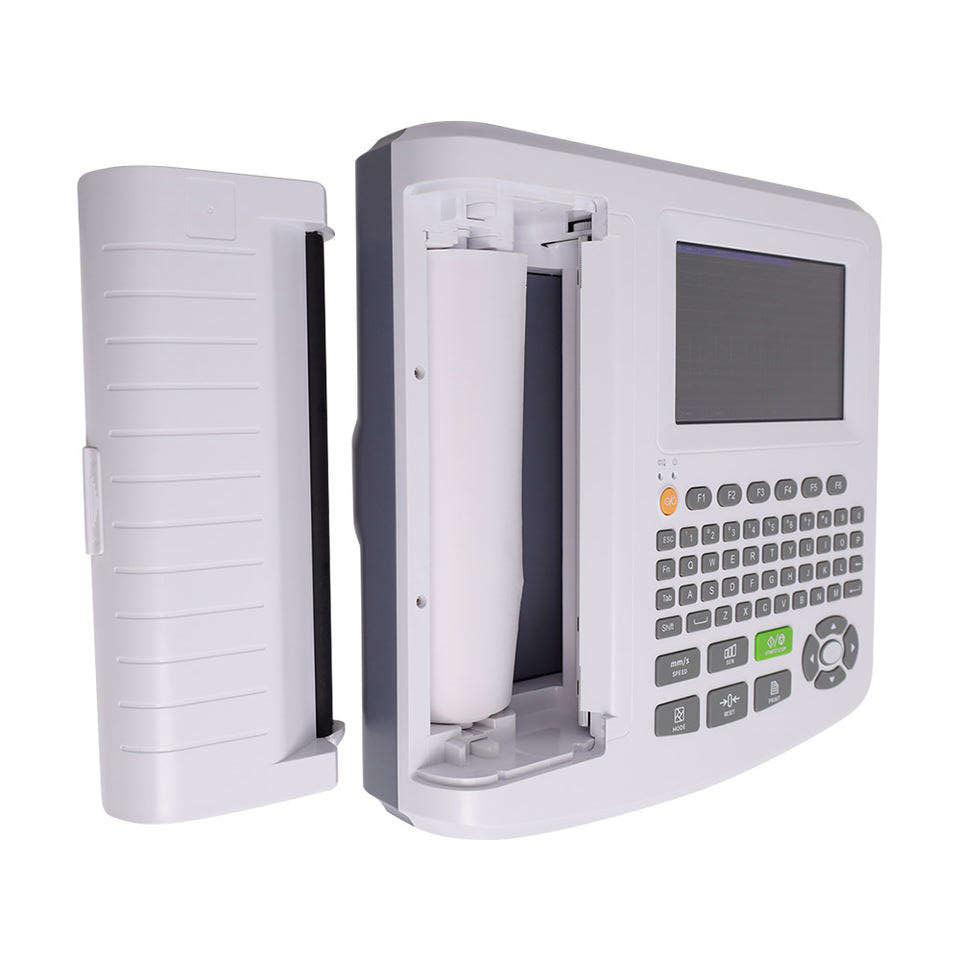

Printing & Reporting Flexibility
• Built-in thermal printer with multiple print formats
• Supports automatic and manual ECG print modes
• Customizable waveform length and report content
• Printing of time, sensitivity, calibration signal, lead name, and patient information
• Support for trend charts, histograms, interval lists, and superimposed QRS waveforms
• Timing print function for different clinical requirements
Automatic Measurement & Interpretation
The system supports automatic ECG parameter measurement and interpretation for routine diagnostics, including:
Heart rate (HR)
PR interval and P duration
QRS duration
QT / QTc interval
P / QRS / T axis
R(V5), S(V1), and R(V5)+S(V1) amplitude
This helps reduce clinician workload and improve diagnostic efficiency.
⚠️ Note: Automatic interpretation availability depends on local regulatory requirements.

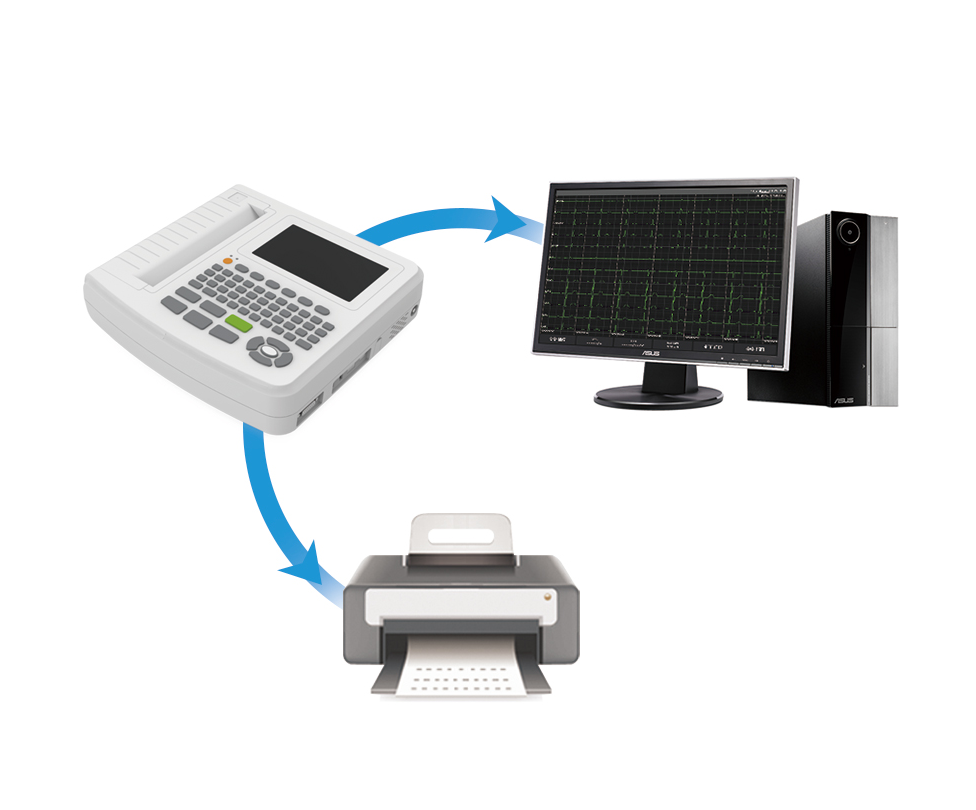

Data Management & Connectivity
• Built-in case database for ECG record storage and review
• Historical cases can be queried, modified, transmitted, and printed
• Case data can be exported in multiple formats (dat, xml, bmp, png)

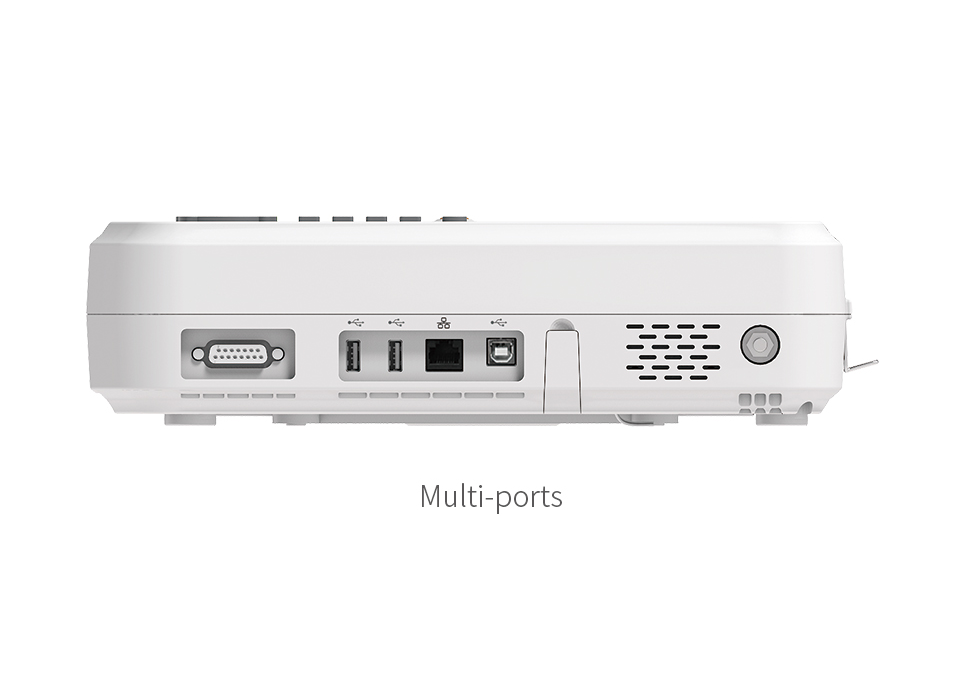

• Support for external USB keyboard, scanner, and printer
Power Performance & Mobility
• AC / DC power supply adaptable to 50 / 60 Hz
• Built-in rechargeable lithium battery with protection circuits
• Up to 10 hours standby time under optimal DC conditions
• Continuous printing for more than 3 hours
• Suitable for ward rounds, home visits, and mobile examinations
Regulatory & Availability Notes
Some functions and configurations are optional
Availability may vary depending on country or region
Please confirm specifications before procurement
